Air Conditioner for Bus
|
Introduction |
This product, model DGY35E-6, features an integrated evaporator and cooling unit design; it offers reliable quality and superior cooling performance, making it suitable for 12–13 meter highway coaches, city buses, and school buses. |
||||
|
Rated cooling capacity(Kcal/h) |
35000 |
Max cooling capacity(kcal/hr) |
36000 |
||
|
Model |
DGY35E-6 |
System /compressor weight(kg) |
≤200kg/33 kg |
||
|
Buses |
12~13m |
Dimension |
3366×1920×269mm |
||
|
Item |
Model |
Brand |
Qty |
||
|

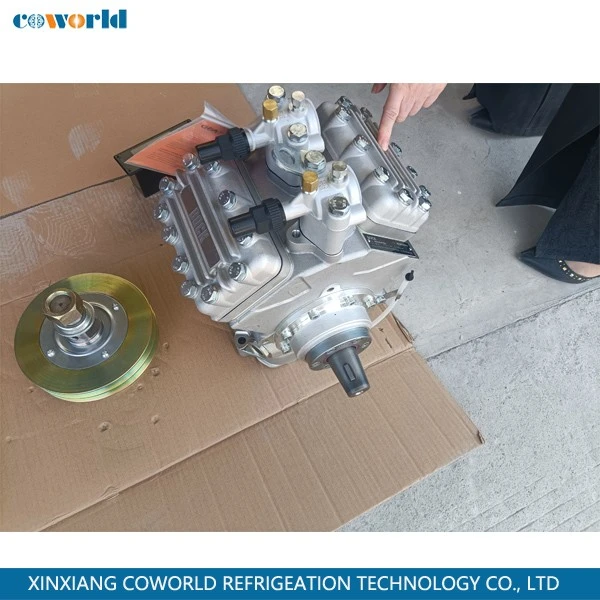

Compressor |
Model |
FKX40/755K |
BOCK |
1 SET |
|
|
Displacement |
755cc |
||||
|
Clutch |
Optional |
1 PC |
|||
|

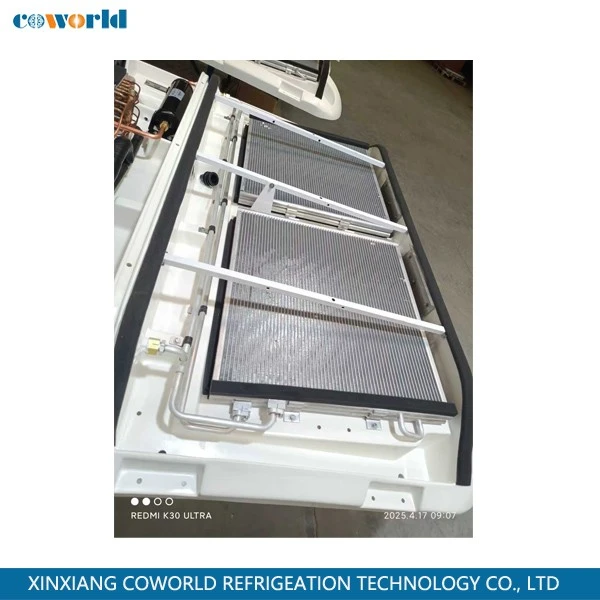

Condenser |
Fan |
LNF273101X |
Chinese brand |
6PCS |
|
|
Coil |
Parallel flow |
Our design |
1 SET |
||
|
Shell |
FRP |
Our design |
1 PC |
||
|
Evaporator |
Blower |
ZFF21028E |
Chinese brand |
8 PCS |
|
|
Coil |
Copper tube and Aluminum fin |
Our design |
1 SET |
||
|
Sight glasses |
Chinese brand |
1 SET |
|||
|
Expansion valve |
TGEN 8(067N7167) |
Danfoss |
1 SET |
||
|
Drier |
QKC76.265.124 |
Chinese |
1 PC |
||
|
Reservoir |
QKC90.398.151 |
Chinese |
1 PC |
||
|
Electric part |
Control panel |
CK201415712 |
New base |
1 PC |
|
|
Connector |
AMP |
Anpu(USA) |
1 SET |
||
|
Wire harness |
25㎡/50㎡ |
Our design |
1 SET |
||
|
Relay |
Panasonic or Ford |
1 SET |
|||
|
Accessories |
Tube |
Hose |
Chinese brand |
1 SET |
|
|
High/low pressure switch |
TH-KZ-H/L |
Chinese brand |
1 PC/EACH |
||
|
Installation accessories |
Stainless steel standard parts, drain hoses, mounting gaskets, rubber gaskets, etc. |
||||
|
Power consumption |
24V |
≤150A |
|||
Air conditioner for bus are primarily used in long-distance coaches, short-distance urban and rural buses, and tourist coaches. They are also found in specialized buses, such as school buses, employee commuter buses, motorhomes, and camping buses. Air conditioning is now a standard feature on buses, enhancing passenger comfort during the journey.
Our company has been operating in the refrigeration industry for over 15 years. We specialize in providing air conditioner for bus, offering a wide range of models suitable for vehicles varying in length from 5.5 to 13 meters. We recommend the most appropriate model based on factors such as vehicle length, seating capacity, and ambient temperature. We hope our products enhance passenger comfort and look forward to the opportunity to collaborate with you.
Core Quality Inspection for air conditioner for bus
Basic Pre-inspection: Unit appearance, component verification, preliminary check of piping airtightness, etc.
Core Airtightness Testing: Pressure-retention leak testing, dynamic pressure testing after refrigerant charging, and full-point scanning using electronic leak detectors.
Cooling and heating performance testing.
Airflow, air duct, and fan system testing.
Electrical control system testing.
Extreme Operating Condition Testing: Idle durability, vibration/shock testing, high/low-temperature environmental testing, and waterproofing tests.
Specialized Safety Testing: Defrosting function, compressor overload protection, piping insulation, etc.
Precautions for Transporting air conditioner for bus:
Seal refrigerant lines with plugs; seal the openings of evaporator fans and condensers using cover plates and stretch wrap. Apply waterproof and dustproof protective covers to electrical components.
Place shock-absorbing material between the unit and the wooden pallet; install protective mesh over the fins; securely fasten components such as compressors, expansion valves, and filter-driers (ideally wrapping them in foam).
Affix appropriate labels indicating "This Side Up," "Fragile," "Do Not Stack," "Keep Dry/Protect from Rain," etc.
Warranty period: one year.
Should any quality issues arise with the air conditioner for bus within one year, we will first arrange for a local after-sales service center to address the matter on-site promptly. If there is no local service center, the customer may provide photos or videos illustrating the specific issue; our technical staff will then diagnose the problem and ship replacement parts free of charge.
