Automobile Air Conditioner
|
Introduction |

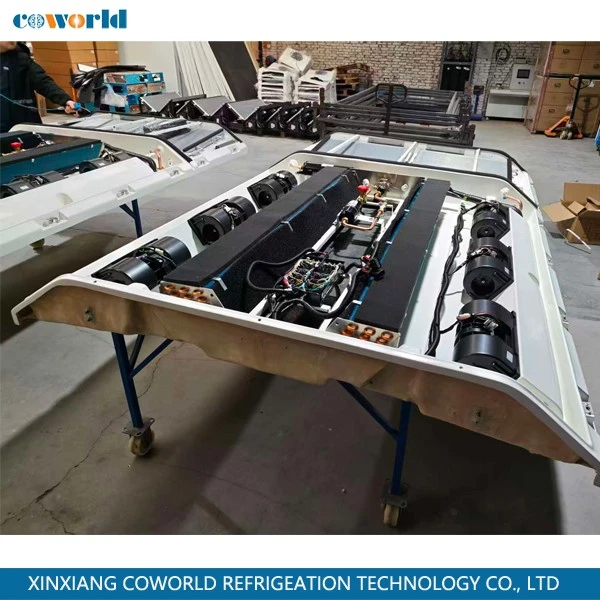

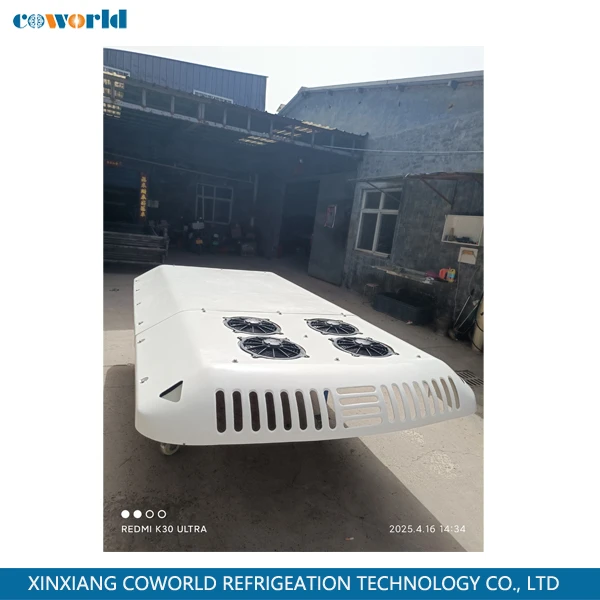

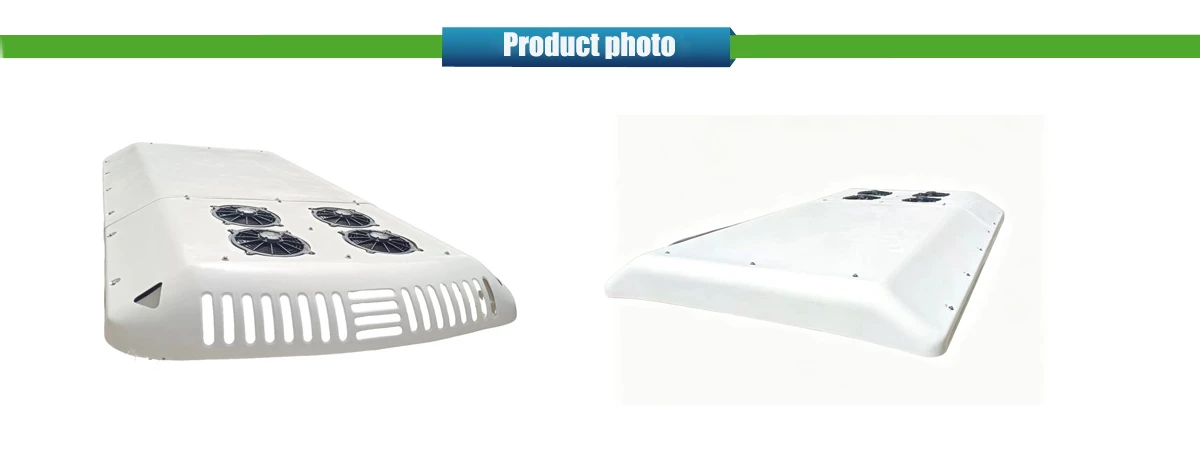

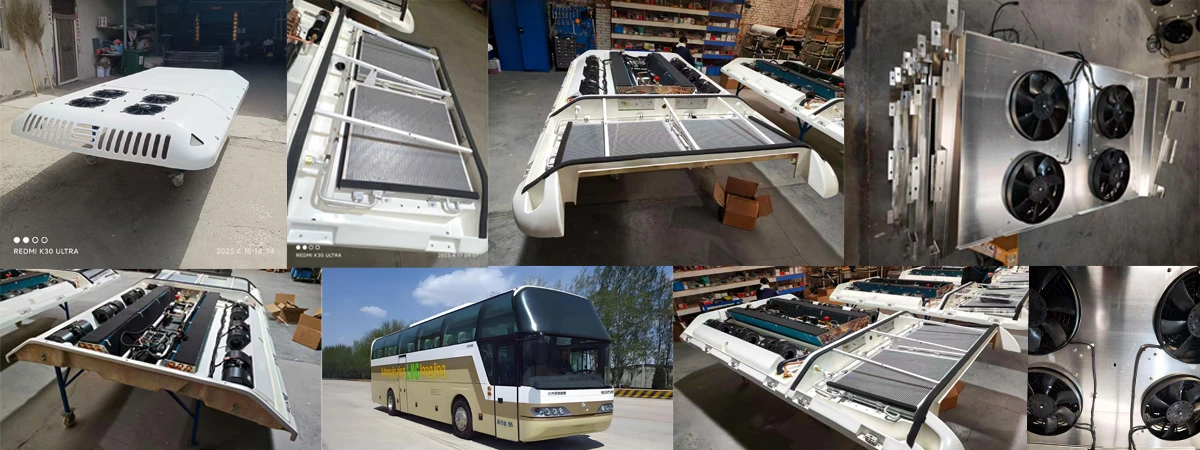

Automobile air conditioner Model: DGY35E-5, featuring an integrated, front-facing, double-layer parallel-flow structure. This product has been successfully installed on vehicles for over 15 years, stable quality and superior cooling performance; suitable for 11- to 12-meter highway coaches and city buses. |
|||||
|
Rated cooling capacity: 28000Kcal/h |
Max cooling capacity: 30000Kcal/h |
|||||
|
Model: DGY35E-5 |
Weight: ≤230kg |
|||||
|
Bus: 11~12m |
Dimension: 3370×1925×270mm |
|||||
|
Item |
Model |
Brand |
Qty |
|||
|

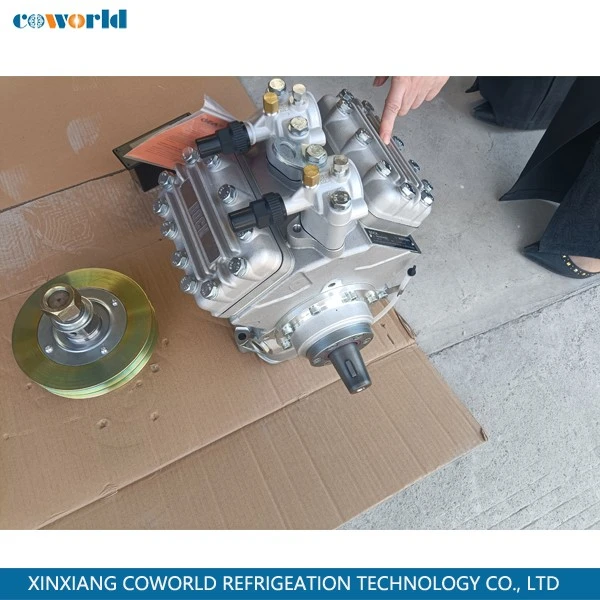

Compressor |
Model |
FKX40/755K |
BOCK |
1 SET |
||
|
Displacement |
755cc |
|||||
|
Clutch |
Electromagnetic Clutch |
1 SET |
||||
|
Generator |
150A |
Prestolite |
1套 |
|||
|

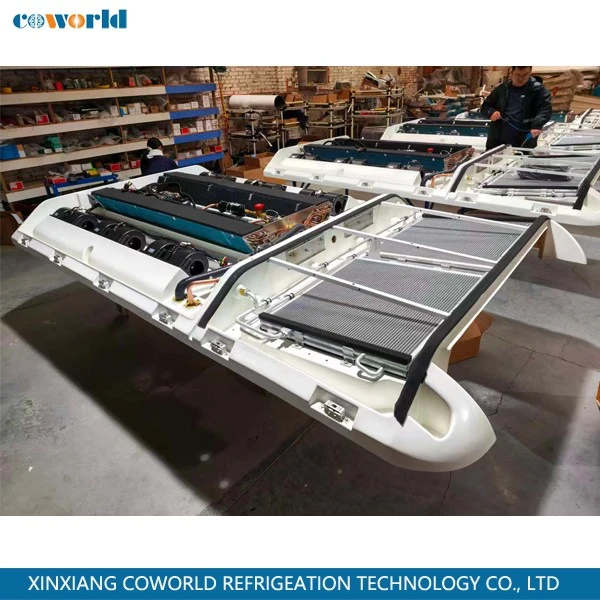

Condenser |
Fan model |
LNF273101X |
Chinese brand |
4台 |
||
|
Type |
Parallel flow |
Our design |
1 SET |
|||
|
Shell |
FRP |
Our design |
1 SET |
|||
|
Evaporator |
Fan model |
ZFF-21028E |
Chinese brand |
6 SET |
||
|
Type |
Copper tube and Aluminum fin |
Our design |
1 SET |
|||
|
Sight glass |
Chinese brand |
1 SET |
||||
|
Expansion valve |
TGEN 8 |
Danfoss |
1 SET |
|||
|
Drier |
QKC76.265.124 |
Our design |
1件 |
|||
|
Electric part |
Control panel |
New base |
1 SET |
|||
|
Connector |
AMP |
Anpu(USA) |
1 SET |
|||
|
Wire harness |
Our design |
1 SET |
||||
|
Relay |
Panasonic or Ford |
1 SET |
||||
|
Accessories |
Tube |
Hose |
Chinese brand |
1 SET |
||
|
High and low pressure switch |
TH-KZ-H/L |
Chinese brand |
1 PC/EACH |
|||
|
Installation accessories |
Stainless steel standard parts, drain hoses, mounting gaskets, rubber gaskets, etc. |
|||||
|
Power consumption |
≤120A |
|||||
Automobile air conditioner are primarily used in coaches, city buses, and long-distance passenger vehicles. Far more than just equipment for regulating cabin temperature, they are essential for enhancing travel comfort and ensuring a high-quality passenger experience. By safeguarding various forms of public passenger transport and making every journey pleasant, these systems serve as a standard feature of modern passenger vehicles.
The company boasts a comprehensive technological innovation system and industry-leading capabilities in technology development, quality assurance, product delivery, and after-sales service of automobile air conditioner. It specializes in producing high-end, cutting-edge products, using world-renowned brands for its core components. Its mainstream products are sold in most cities across China and in dozens of overseas markets, earning widespread acclaim.
Our company mission:
Quality first, market-driven, service-oriented, and reputation-driven.
Our philosophy:
Honesty and trustworthiness, customer focus, fair pricing, and service first.

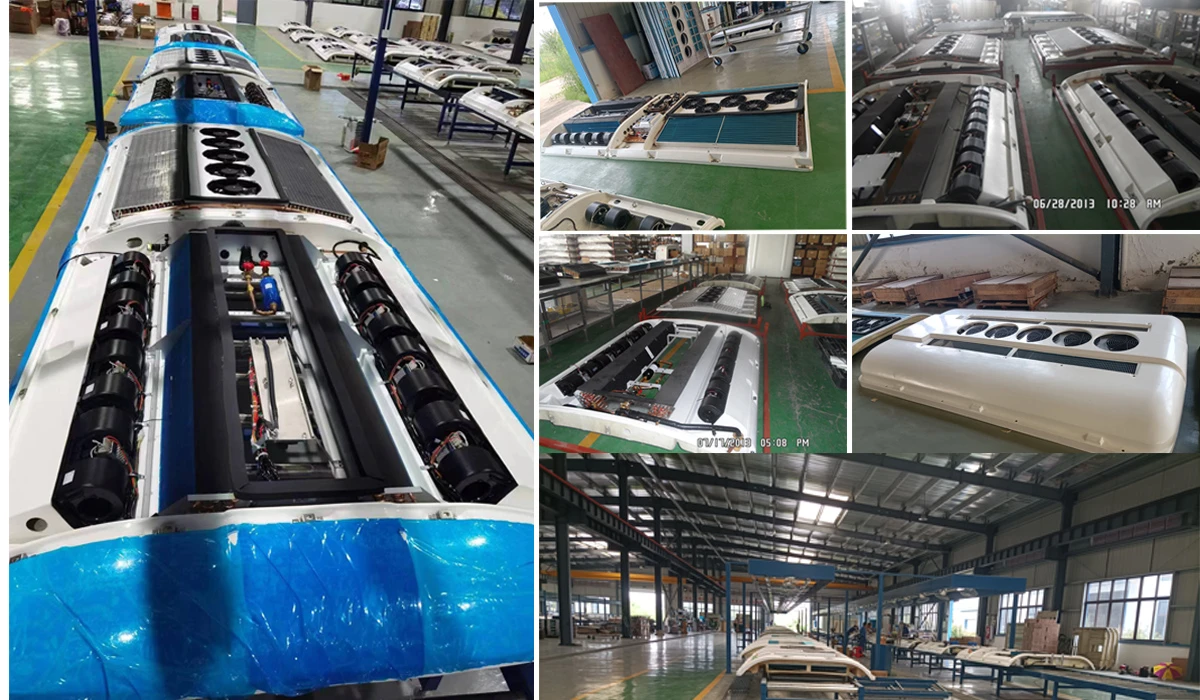

Quality control for automobile air conditioner spans the entire process-from incoming component inspection and unit assembly to performance testing and final factory acceptance. It begins with component quality management: core parts such as compressors, evaporators, condensers, fans, and piping connectors must strictly adhere to industry standards.
During assembly, standardized procedures are enforced for wiring, insulation, and component securing. These measures prevent safety hazards-such as loose connections or short circuits caused by abrasion-that could arise from prolonged exposure to road vibrations, thereby ensuring stable operation under complex driving conditions.
Once assembly is complete, performance testing serves as a critical quality checkpoint. The factory subjects every unit to a comprehensive series of tests, including power-on checks, high- and low-pressure withstand tests, cooling and heating efficiency evaluations, airflow uniformity assessments, and long-duration simulated operation tests.
We offer automobile air conditioner in various sizes and provide packaging options ranging from cardboard cartons to wooden crates. We recommend the most suitable packaging and shipping methods based on the specific models and quantities in the customer's order; should the customer have special requirements, we also propose professional solutions tailored to their needs.
After-sales service of automobile air conditioner goes beyond mere fault repair; it is an extension of quality service. Consistent and efficient after-sales support effectively reduces customers' operational and maintenance costs, enhances the operational stability of bus air-conditioning systems, builds a strong product reputation, and safeguards safe, comfortable, and efficient operations within the passenger transport industry.
