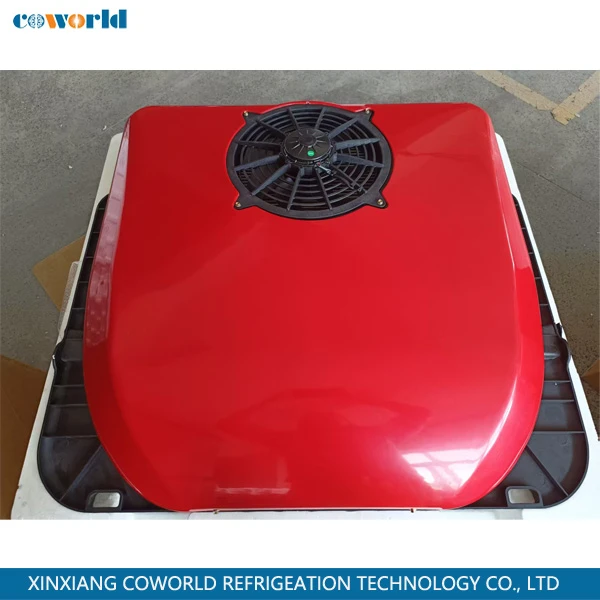

Truck Air Conditioner
RVs and camper vans.
Construction machinery: Such as loaders, dump trucks, cranes, and mining vehicles.
Passenger transport and specialty vehicles.
Send Inquiry
Product Details ofTruck Air Conditioner
|
Model |
YC2000-12V |
YC2000-24V |
|
Rated power |
300-700W |
400-1000W |
|
Voltage (volts DC) |
12V |
24V |
|
Current consumption (A) |
40-60A |
25-50A |
|
Cooling capacity (W) |
2200W |
2400W |
|
Contains fluorinated greenhouse gases. Hermetically sealed equipment. |
HFC-134a/600g |
HFC-134a/600g |
|
Lubricating oil |
RH68(POE)/120ml |
RH68(POE)/120ml |
|
Weight (kg) |
36kg |
36kg |
|
Circulating air volume |
600 m³/h |
600 m³/h |
|
Scope of delivery |
Parking air conditioner, remote control |
|
|
Minimum hole size |
60x30cm |
60x30cm |
|
Dimensions (WxHxD) |
970x858x150mm |
970x858x150mm |
|
Package size |
1040x940x380mm |
1040x940x380mm |
Primary application areas for truck air conditioner:
1
Commercial freight vehicles: Primarily for long-haul trucks and cold-chain logistics vehicles during overnight stays at service areas or logistics hubs, while queuing for loading/unloading, or during prolonged highway traffic jams.
2
RVs and camper vans.
3
Construction machinery: Such as loaders, dump trucks, cranes, and mining vehicles.
4
Passenger transport and specialty vehicles.
5
Agricultural machinery.

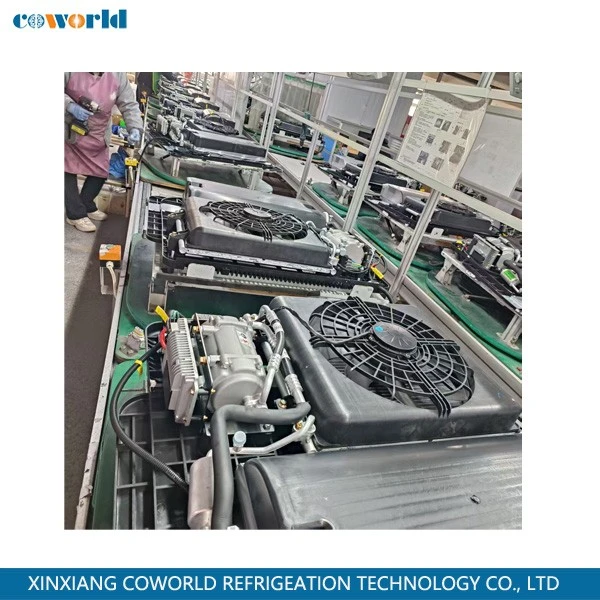

COWORLD REFRIGERATION is a high-tech enterprise specializing in the R&D, manufacturing, sales, and after-sales service of DC inverter truck air conditioner. We integrate product design, mold development, in-house core heat exchanger R&D, automated production, end-to-end quality control, and a global sales network to provide systematic, energy-efficient cooling solutions for long-haul heavy-duty trucks, light trucks, construction machinery, RVs, and specialty vehicles.
The quality control for truck air conditioner adheres to the IATF 16949 automotive quality management system and the group standard T/CPQS E0001-2019. The process encompasses five key modules-incoming material inspection, in-process control, online full inspection, finished product burn-in/aging, and type reliability testing-along with outbound traceability. It specifically targets five common industry issues: refrigerant leakage, compressor seizure, electronic control unit burnout, structural failure due to vehicle vibration, and battery undervoltage protection failure.
Given the characteristics of truck air conditioner, please observe the following precautions during transport:
Keep the unit in a horizontal position throughout transport to prevent compressor damage.
Do not stack heavy items on top of the unit.
Ideally, use an enclosed box truck to protect the unit from sun and rain.
Keep away from sharp-edged cargo, steel frames, and piping to prevent scratches; also, keep away from engine heat sources to prevent rubber hose degradation.
Warranty period: one year.
If the truck air conditioner develops any quality issues within one year, we will provide replacement parts free of charge.
