Bus Air Conditioning System



|
Introduction |

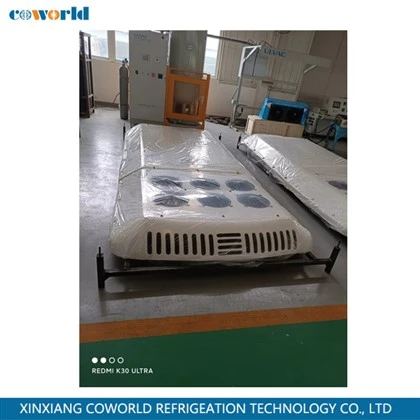

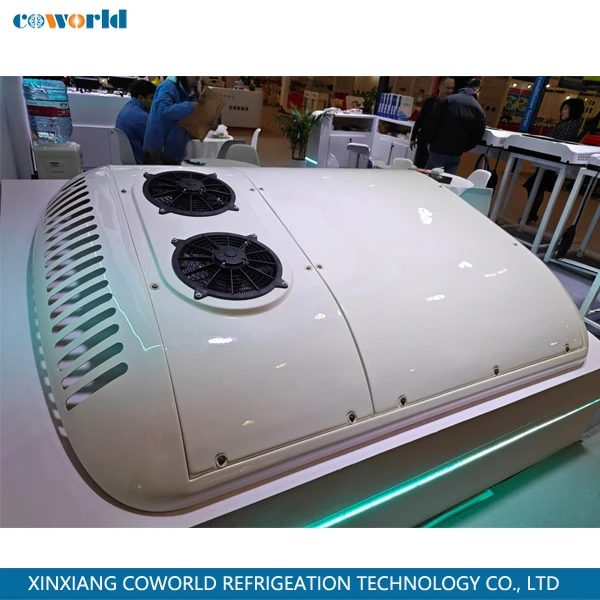

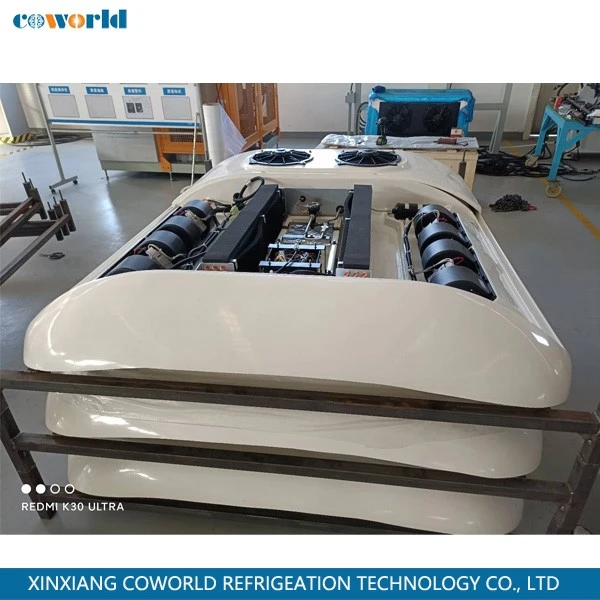

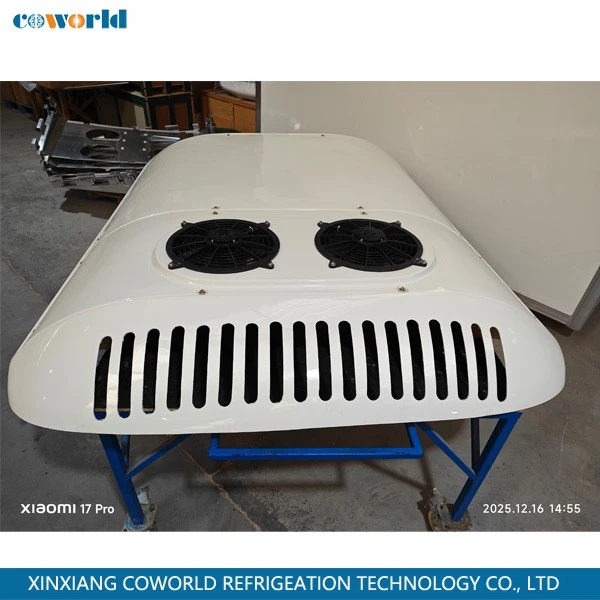

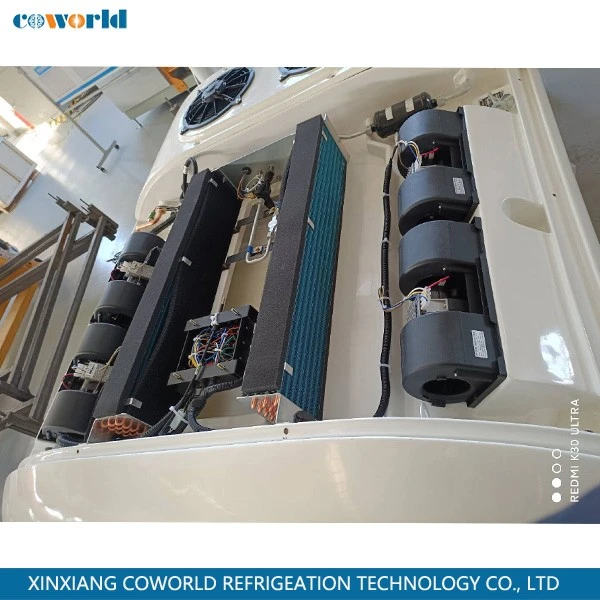

The Bus air conditioning system XFT6N-3E model features an integrated evaporator-condenser design and has a proven track record of over 10 years of vehicle application. It offers reliable quality and superior cooling performance, making it suitable for 6- to 7-meter vehicles, including highway coaches, city buses, and school buses. |
|||||
|
Rated cooling capacity: 12000Kcal/h |
Max cooling capacity: 14000Kcal/h |
|||||
|
Model: XFT6N-3E |
Weight: ≤95kg |
|||||
|
Bus: 6~7m |
Dimension: 2300×1646×309mm |
|||||
|
Item |
Model |
Brand |
Qty |
|||
|
Compressor |
Model |
10P35 |
Guangyu |
1 PC |
||
|
Displacement |
325.12cc |
|||||
|
Clutch |
Self-contained |
1 SET |
||||
|
Generator |
150A |
Prestolite |
1 SET |
|||
|
Condenser |
Fan model |
LNF173101X/ LNF273101X |
Chinese brand |
2 PC |
||
|
Type |
Parallel flow |
Our design |
1 SET |
|||
|
Shell |
FRP |
Our design |
1 SET |
|||
|
Evaporator |
Fan model |
ZFF-12028E/ ZFF21028E |
Chinese brand |
6 PC |
||
|
Type |
Copper tube and Aluminum fin |
Our design |
1 SET |
|||
|
Sight glass |
Chinese brand |
1 SET |
||||
|
Expansion valve |
TGEN 3.5 |
Danfoss |
1 SET |
|||
|
Drier |
QKC76.215.120 |
Our design |
1 PC |
|||
|
Electric part |
Control panel |
WK191-5L/WK291-5NG |
New base |
1 SET |
||
|
Connector |
AMP |
Anpu(USA) |
1 SET |
|||
|
Wire harness |
Our design |
1 SET |
||||
|
Relay |
Ford,Pnasonic |
Panasonic or Ford |
1 SET |
|||
|
Accessories |
Tube |
Hose |
Chinese brand |
1 SET |
||
|
High and low pressure switch |
TH-KZ-H/L |
Chinese brand |
1 PC/EACH |
|||
|
Installation accessories |
Stainless steel standard parts, drain hoses, mounting gaskets, rubber gaskets, etc. |
|||||
|
Power consumption |
≤ 70A (12V) and 50A (24V) |
|||||

With the rapid development of the transportation industry, buses have become a primary mode of transport for both urban-rural and long-distance travel; consequently, the comfort of the interior environment has emerged as a key indicator of a vehicle's quality and service standard. Bus air conditioning system not only regulate cabin temperature and humidity but also handle multiple tasks-such as air purification, ventilation, and defrosting/defogging-playing a vital role in ensuring passenger comfort and driving safety.


Coworld is a company that has been established for over ten years. Our company specializes in the manufacture of Bus air conditioning system, transport refrigeration units, battery thermal management systems, and HVAC solutions for trucks, RVs, and specialty vehicles. We integrate manufacturing with international trade, and our products are widely used in sectors such as rail transit, cold chain logistics, public transportation, aviation, and new energy.
We possess a comprehensive technical innovation system and industry-leading capabilities in R&D, quality assurance, product delivery, and after-sales service. We focus on producing high-end, cutting-edge products, utilizing core components from world-renowned brands. Our flagship products are distributed across most cities in China and dozens of overseas markets, earning widespread acclaim.


Quality control begins with design at the source; modern bus air conditioning system must strictly adhere to national standards.

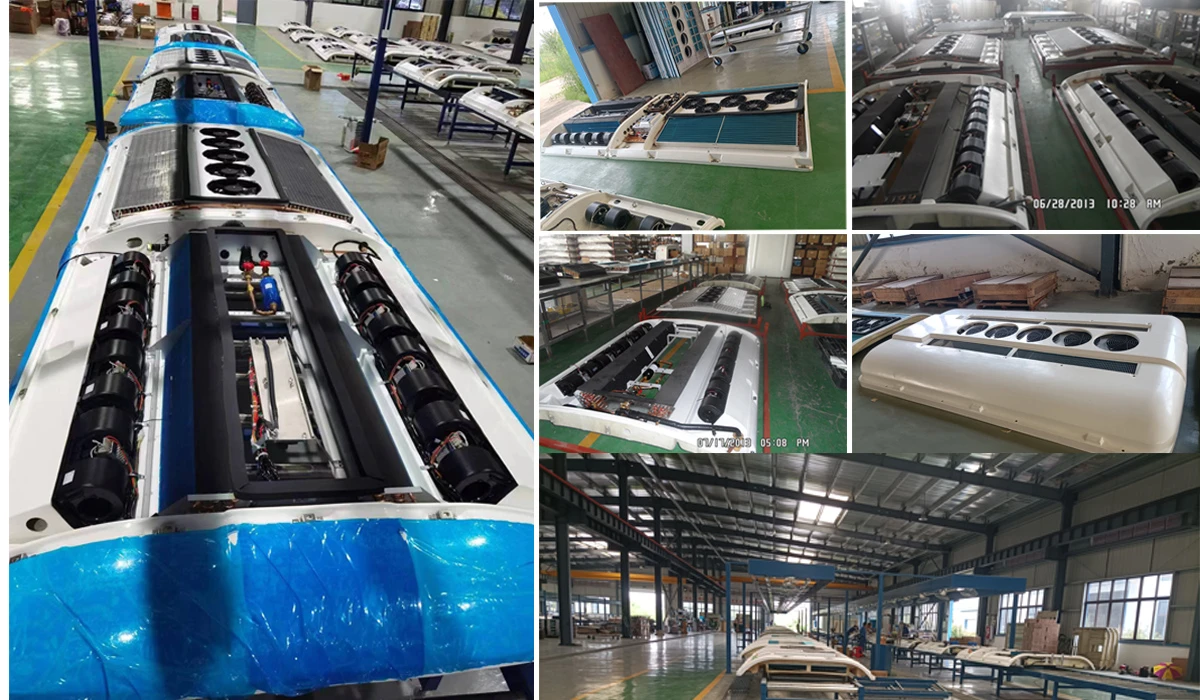

During manufacturing, sealing integrity and assembly precision are critical factors determining the system's service life. The processing of condenser and evaporator fins must ensure flatness and tight contact to maximize heat exchange efficiency. Pipe connections require high-quality O-rings or sealants and must undergo rigorous pressure testing and vacuum leak detection to prevent even minute refrigerant leaks. Furthermore, the assembly of electrical control modules must meet electromagnetic compatibility (EMC) requirements to ensure stable sensor signal transmission and accurate actuator operation, thereby preventing system errors caused by vibration or interference.

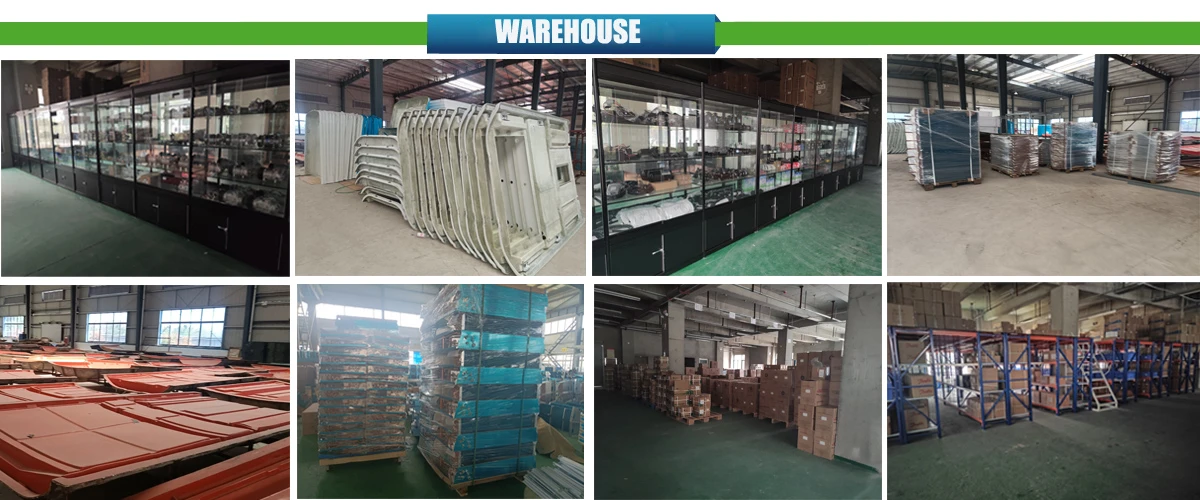

We offer packaging options of bus air conditioning system such as cartons and iron frames, allowing customers to select the type that best suits their needs. We typically ship by sea and take proactive measures to avoid potential issues in compliance with relevant shipping regulations. We also inform customers in advance of any special requirements to prevent unexpected additional costs.

Our after-sales service prioritizes proactive inspection and maintenance; we remind clients to carry out necessary checks. In the event of a malfunction, we respond swiftly and proactively, accurately identifying the specific issue based on the information provided by the client before implementing a targeted solution.
We offer a one-year warranty.
