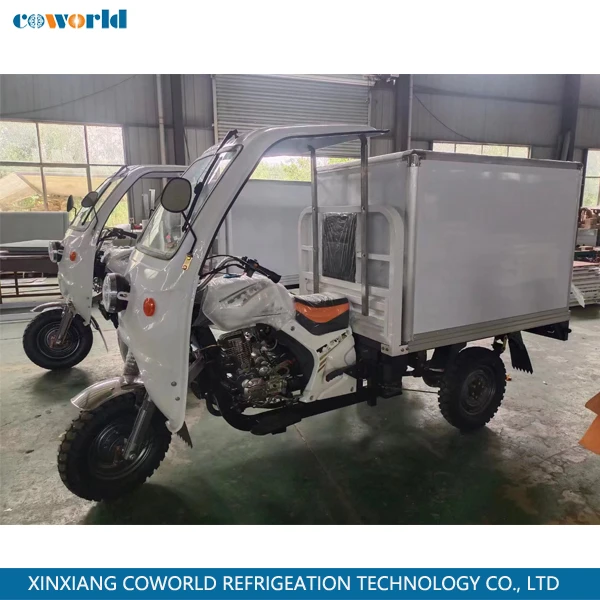

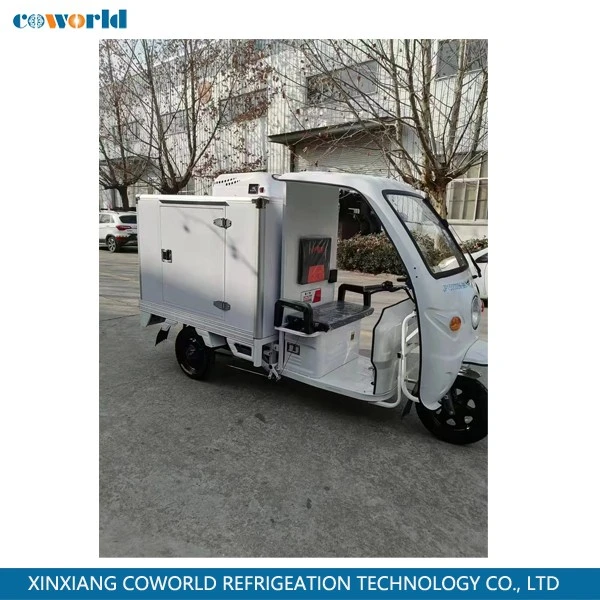

Refrigerted Tricycle with Frozen Cabin
video
Refrigerted Tricycle with Frozen Cabin

Refrigerted Tricycle with Frozen Cabin

Type: frozen
Power: 680W
Rated current: 10.1-11.4A
Rated voltage: DC/60V
Cooling: DC air cooling compressor
Send Inquiry
Product Details ofRefrigerted Tricycle with Frozen Cabin

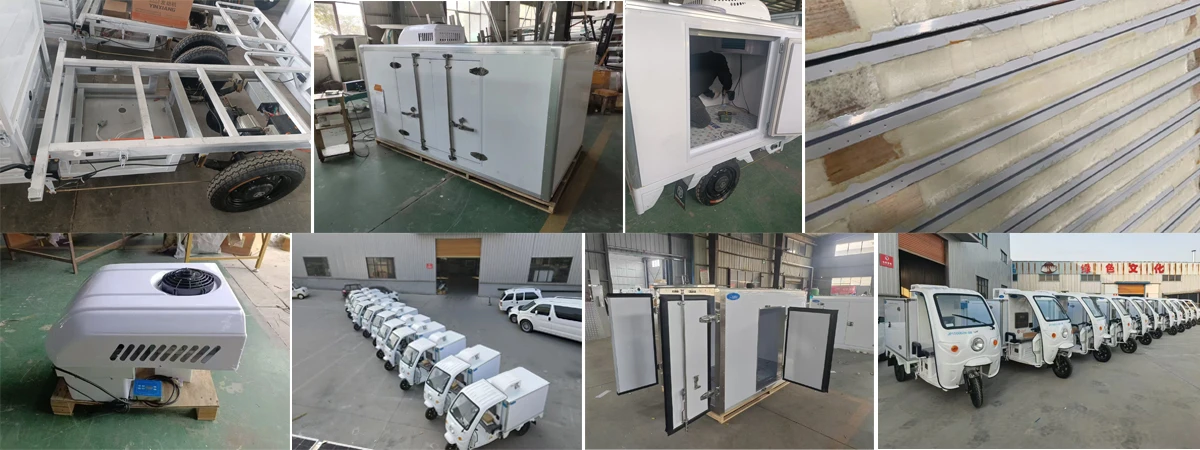

product-1200-450

product-1200-450




 Refrigerated tricycle with frozen cabin specification:

Part

Model

Motor

60V1000W

Controller

60V

Battery

Depends on you

Tyre

Front wheel3.50-12 rear-wheel3.50-12

Shock absorption

Φ33 hydraulic shock absorber And 5pcs high-strength dilated steel plate

Wheel base

2030mm

Wheel track

920mm

Whole weight

350kg

Loading weight

450kg

Dimension

2955*1100*1720mm

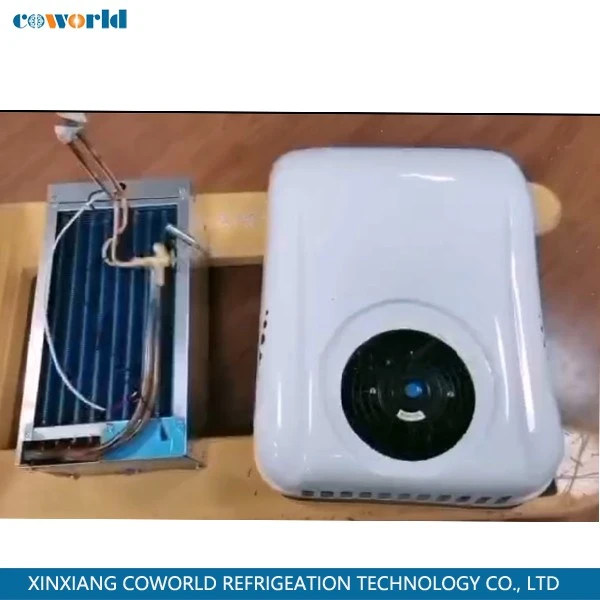

 Refrigeration unit specification:

Type: frozen

Power: 680W

Rated current: 10.1-11.4A

Rated voltage: DC/60V

Cooling: DC air cooling compressor



Part

Description

rotor DC compressor

XH150Z60

Fin type condenser

xh-1.5l

Fin type evaporator

xh-2.0z

DC fan

SNOWFAN YY12038H24B

Controller

XH-W1308

Switch control

LG

Temperature range

0~-20℃(adjustable)

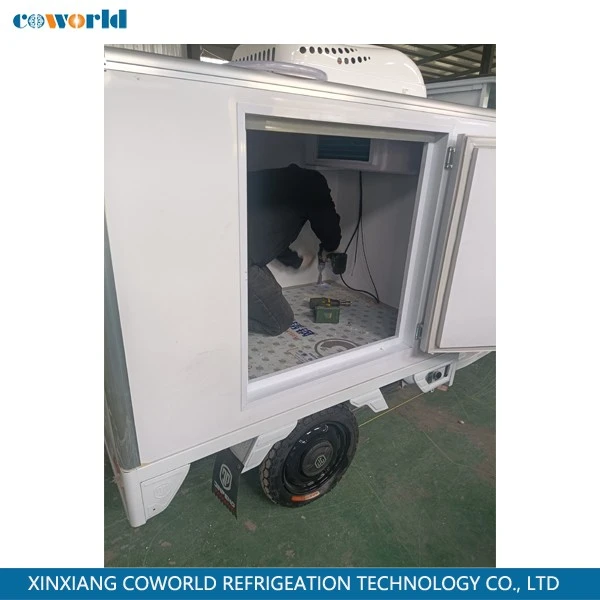

 Box specification:

configuration

Description

Dimension

1500*1000*1000mm

Foam material

polyurethane

Surface material

Steel plate

Wall thickness

75mm

Wrap angle

Aluminum alloy

Door

Side door

Lock

1pc

Hinge

2 pcs

We can customize the box according to your dimension



.jpg

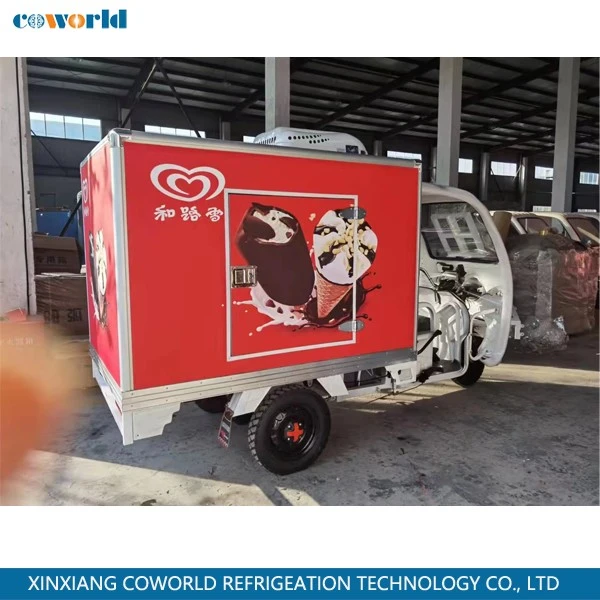

Refrigerated tricycle with frozen cabin, combining the flexibility of a tricycle with modern refrigeration technology, act as mobile cold storage units and are integrated into many aspects of our daily lives. They provide the "last mile" delivery solution for fresh produce in urban areas, efficiently handling small batches and frequent deliveries of temperature-sensitive goods. Refrigerated tricycle with frozen cabin offer same-day delivery for small and medium-sized businesses, canteens, and hotels, reducing the need for storage. They can also handle door-to-door delivery of high-end fresh produce, baked goods, and flowers. Furthermore, they are suitable for a variety of products including agricultural products, pharmaceuticals, and ice cream, providing great convenience to our lives.






product-1200-700

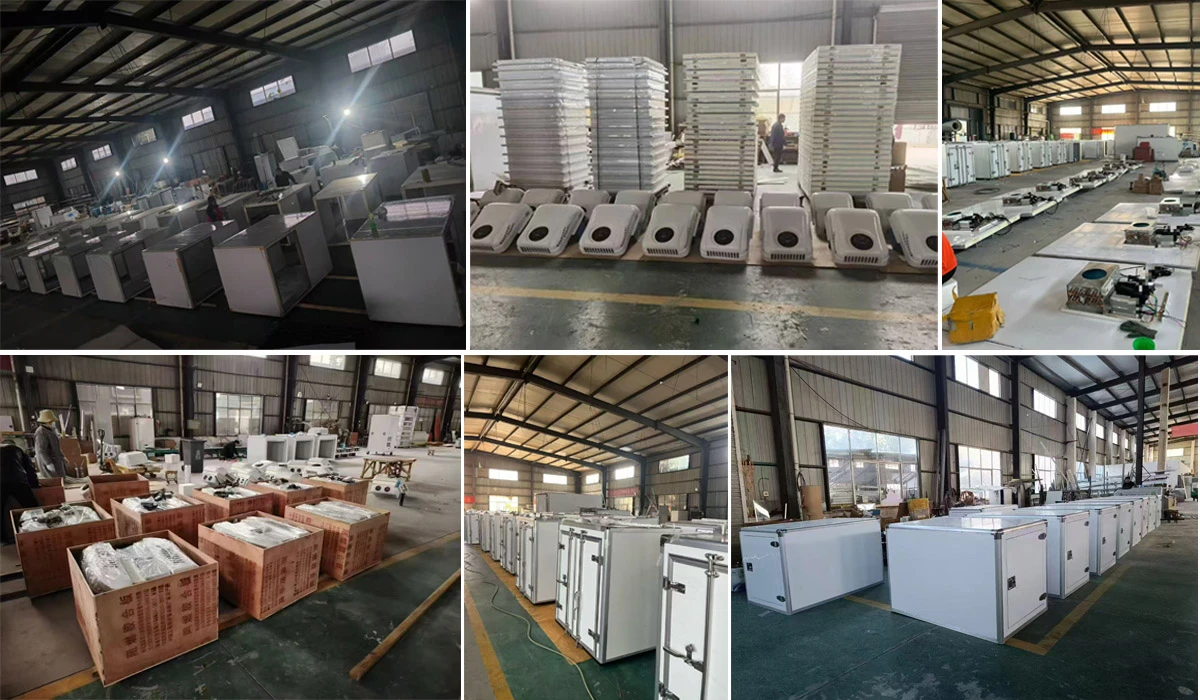

Coworld has been built more than 10 years, we mainly engaged in the refrigeration industrial, We have professional team to design and develop the product which can meet your requirements. We sincerely look forward to your cooperation. we offer Refrigerated tricycle with frozen cabin, refrigerator truck body, truck refrigeration unit, cold room& compressor condenser unit. We offer almost all the product of the cold chain. Meanwhile, we also offer the parking& bus air conditioner for passengers. Welcome to visit our factory.









Our company has professional team to control the quality of the Refrigerated tricycle with frozen cabin. They will check the material firstly, then in all the production process, they will also check all the details. Finally before sending, we will do strength testing, thermal conductivity testing, thermal insulation effect testing, electrical testing, leaking testing, cooling capacity testing and so on.









To ensure the safety and quality of the refrigerated tricycle with frozen cabin, we use scientific packaging and transportation methods to effectively prevent damage or loss during transit. We also purchase insurance to ensure prompt compensation to customers in case of any unforeseen incidents.




After-sales service is a crucial part of the entire sales process. We place great importance on addressing customer feedback regarding quality issues and provide timely responses to help customers resolve problems.

Our warranty period is one year. If our refrigerated tricycle with frozen cabin experience quality issues within one year, we will provide replacement parts free of charge.
